Mechanical stone fixing

Natural stone cladding on concrete with fixings using expansion bolts (dry fixing)

The following 7 points are taken into consideration when designing a fixing system for natural stone cladding:

  • Stone dimensions
  • Cavity structure, position size and insulation
  • Horizontal or vertical joint installation
  • Structural wall load carrying
  • Height of façade
  • Relevant dynamic loads such as wind load and seismic loads
  • Other design criteria of the project



ancres mécaniques pour pierre naturelle



ancres mécaniques FX GFXL CXL Double U

Downloads

Name
 Size
Date modified





Advantages

  • 3-dimensional adjustability
  • Drying time avoided
  • 304 and 316 stainless steel grades
  • Layout sheets
  • Complete façade folder with every designed anchors

projects

Museum Aan de Stroom – Antwerp

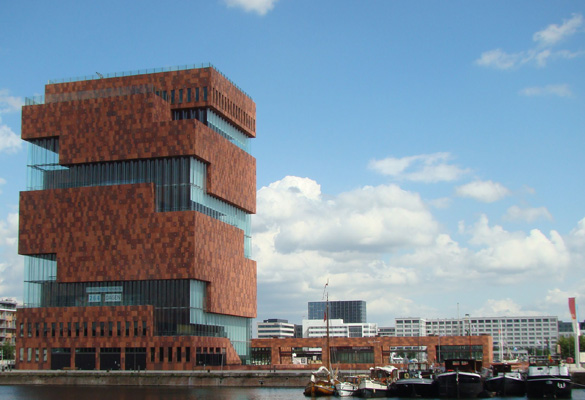

Parement en pierres naturelles du Musée Aan de Stroom à Anvers  READ MORE
